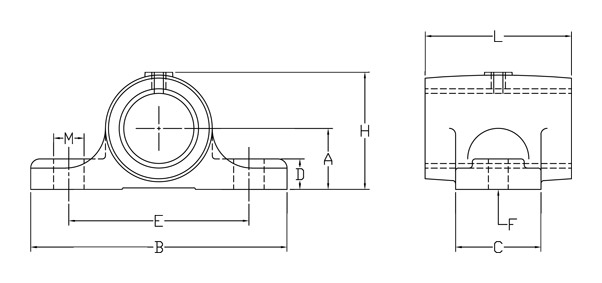

60-21-0208 - Image 2

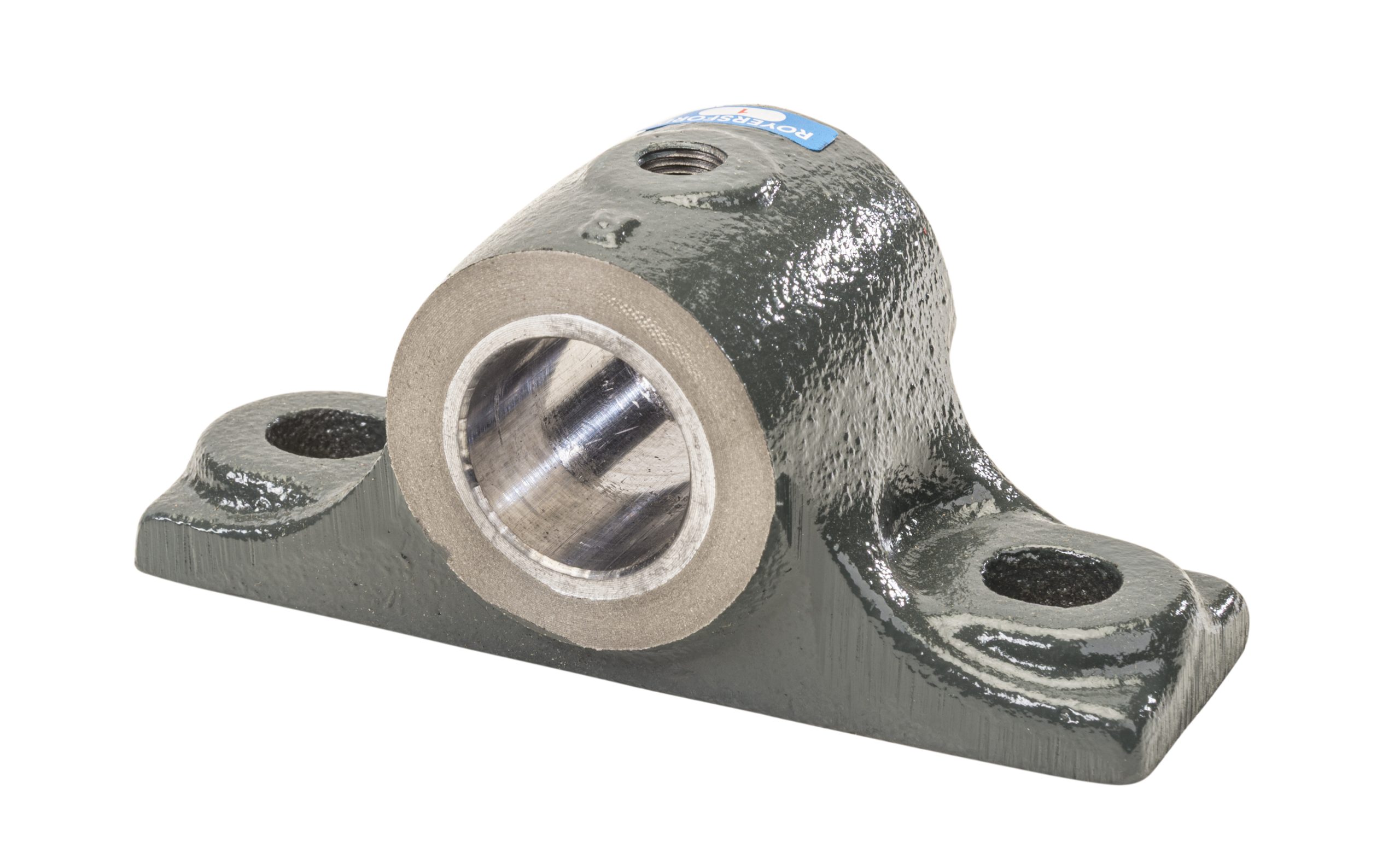

60-21-0208 - Image 3

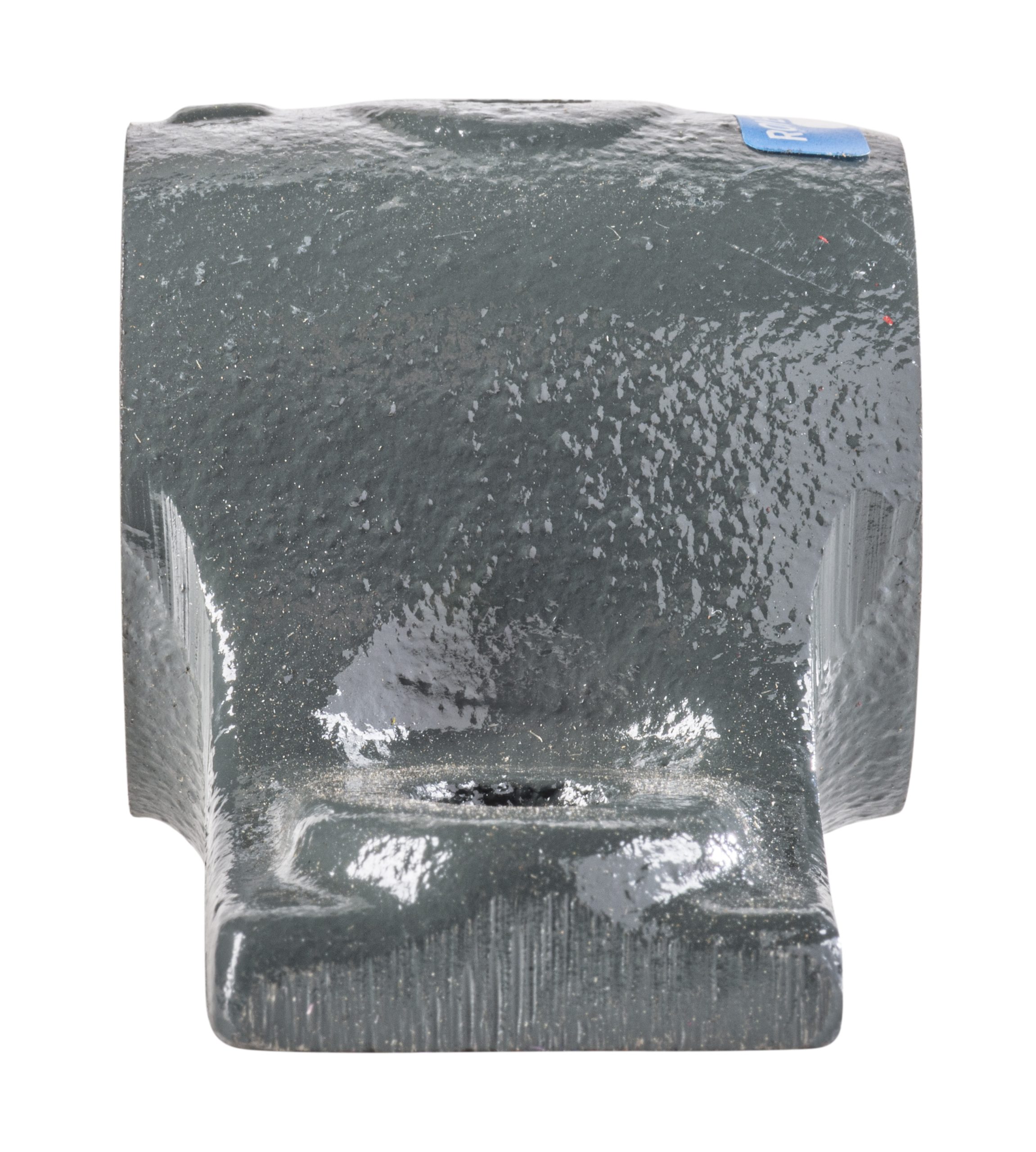

60-21-0208 - Image 4

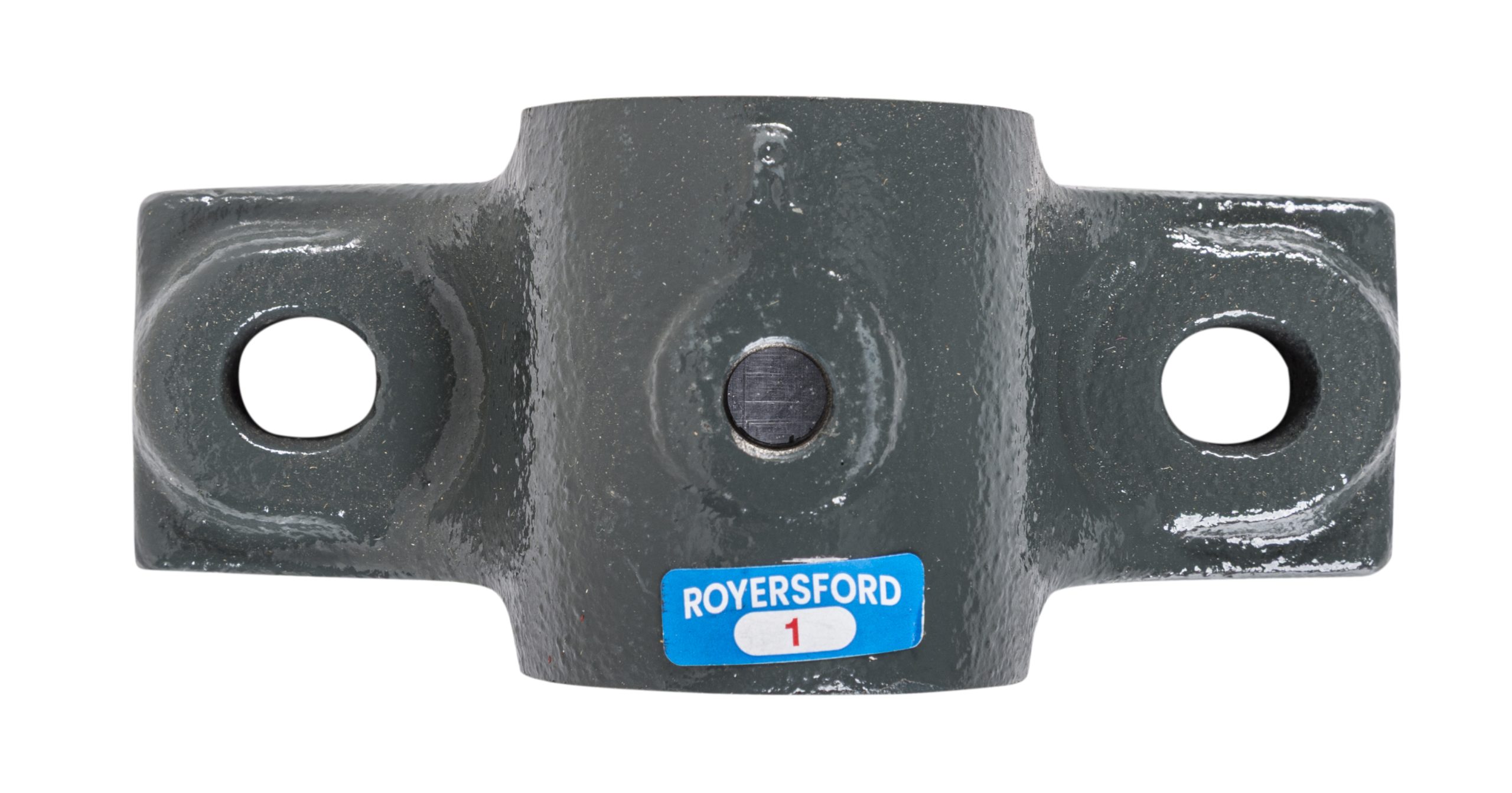

60-21-0208 - Image 5

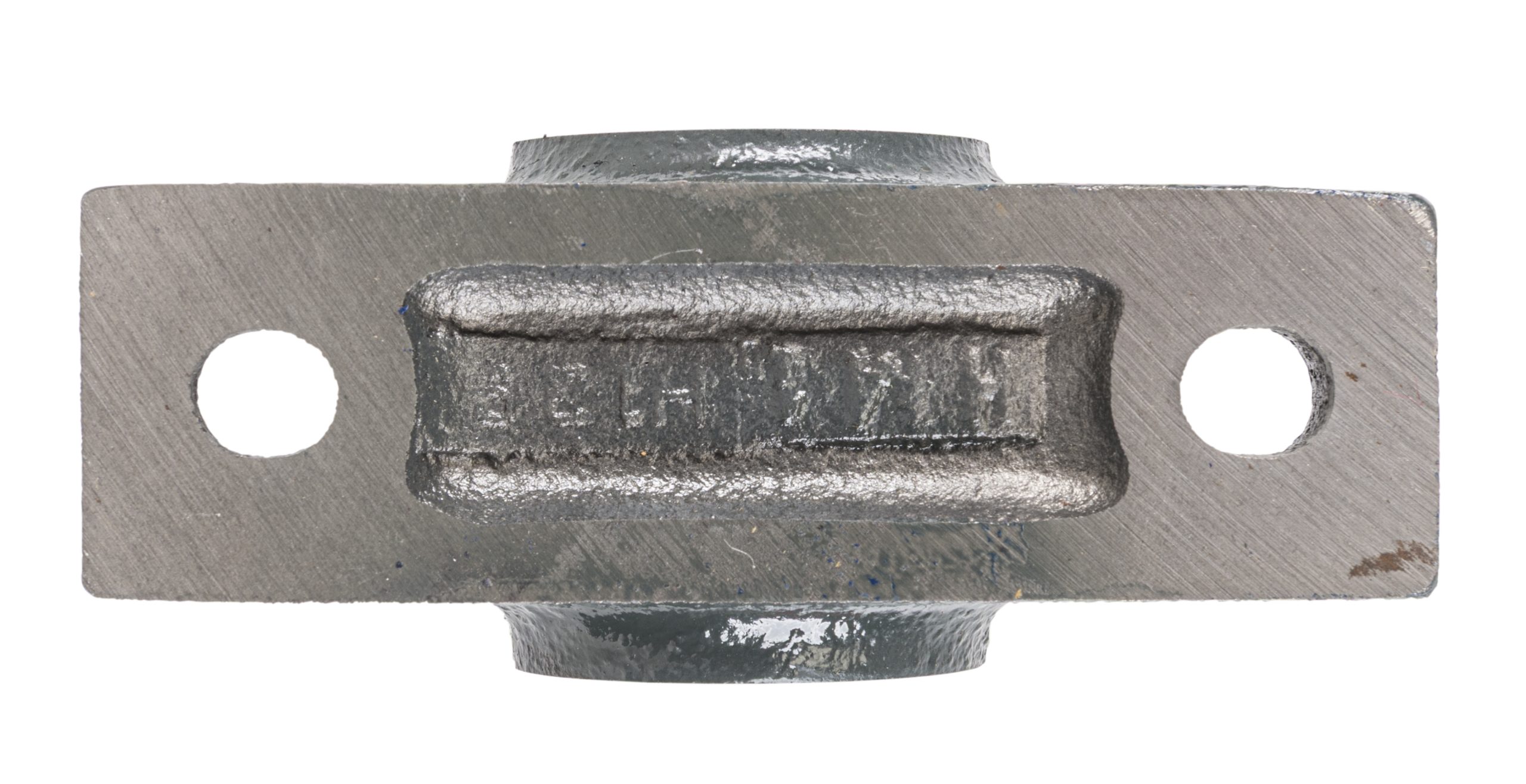

60-21-0208 - Image 6

SKU: 60-21-0208 Categories: , ,

60-21-0208

Request a Quote

Description

Solid journal bearings are used where a removable cap is not required. Loading range can be to within 30° of either side of the grease groove.

Specifications
Shaft Size (in.)

2 1⁄2
Wt. (Lbs.)

12.5
A (in.)

2 1⁄8
B (in.)

8
C (in.)

3
D (in.)

1 1⁄8
E (in.)

5 3⁄4
F Dia. Bolt (in.)

5⁄8
H (in.)

4 1⁄8
L (in.)

5
M (in.)

7⁄8
Pipe Tap

0.25
