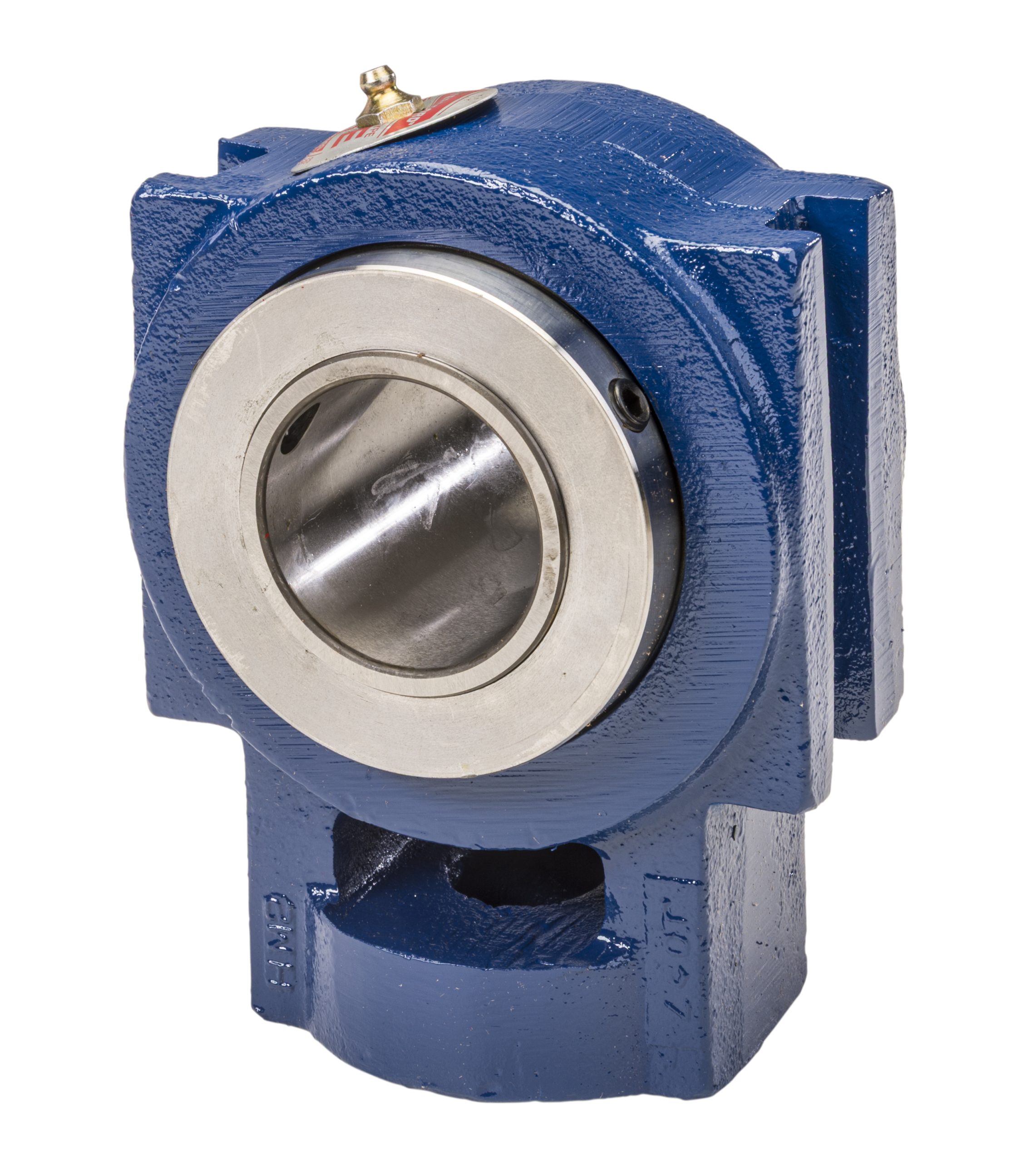

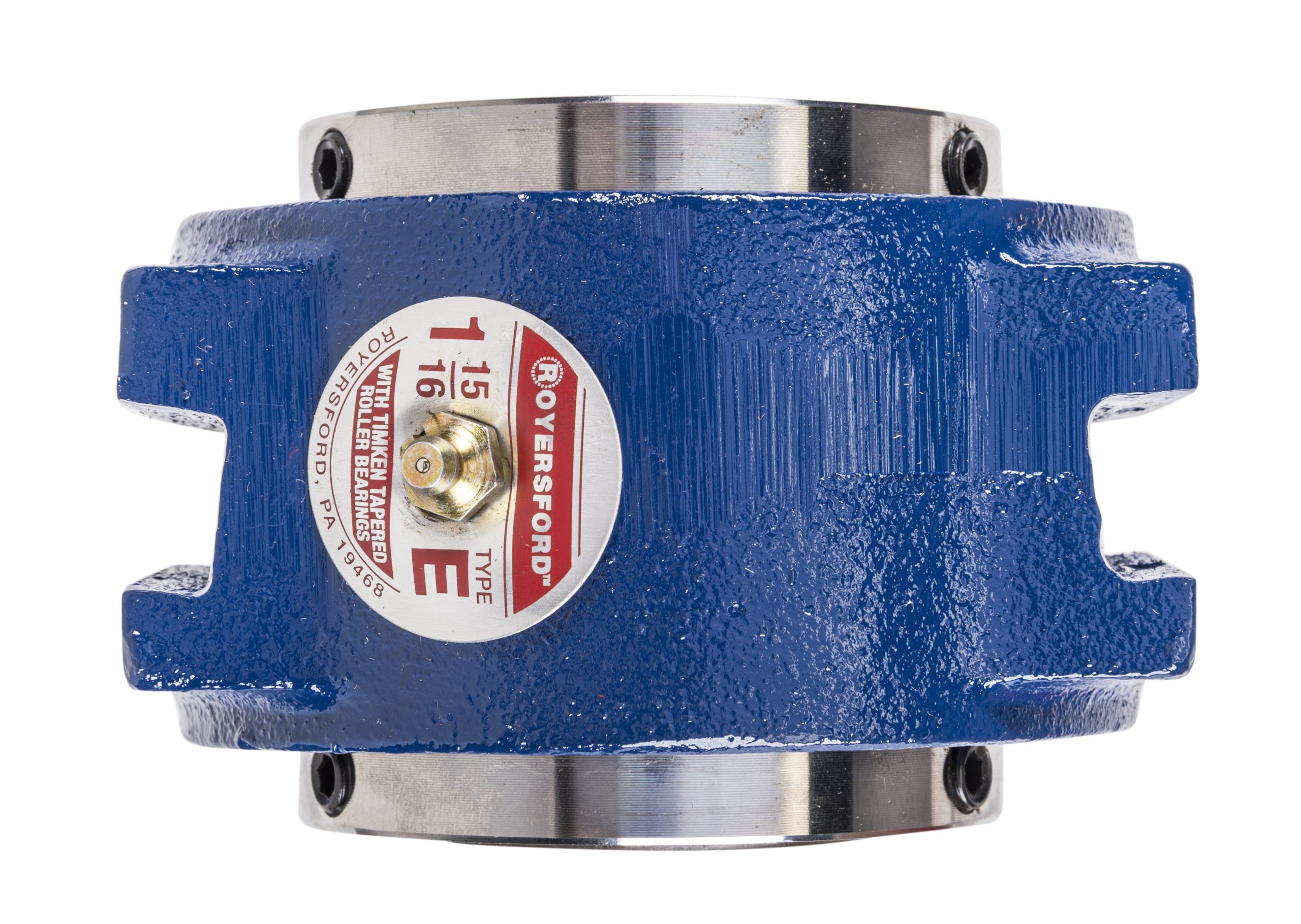

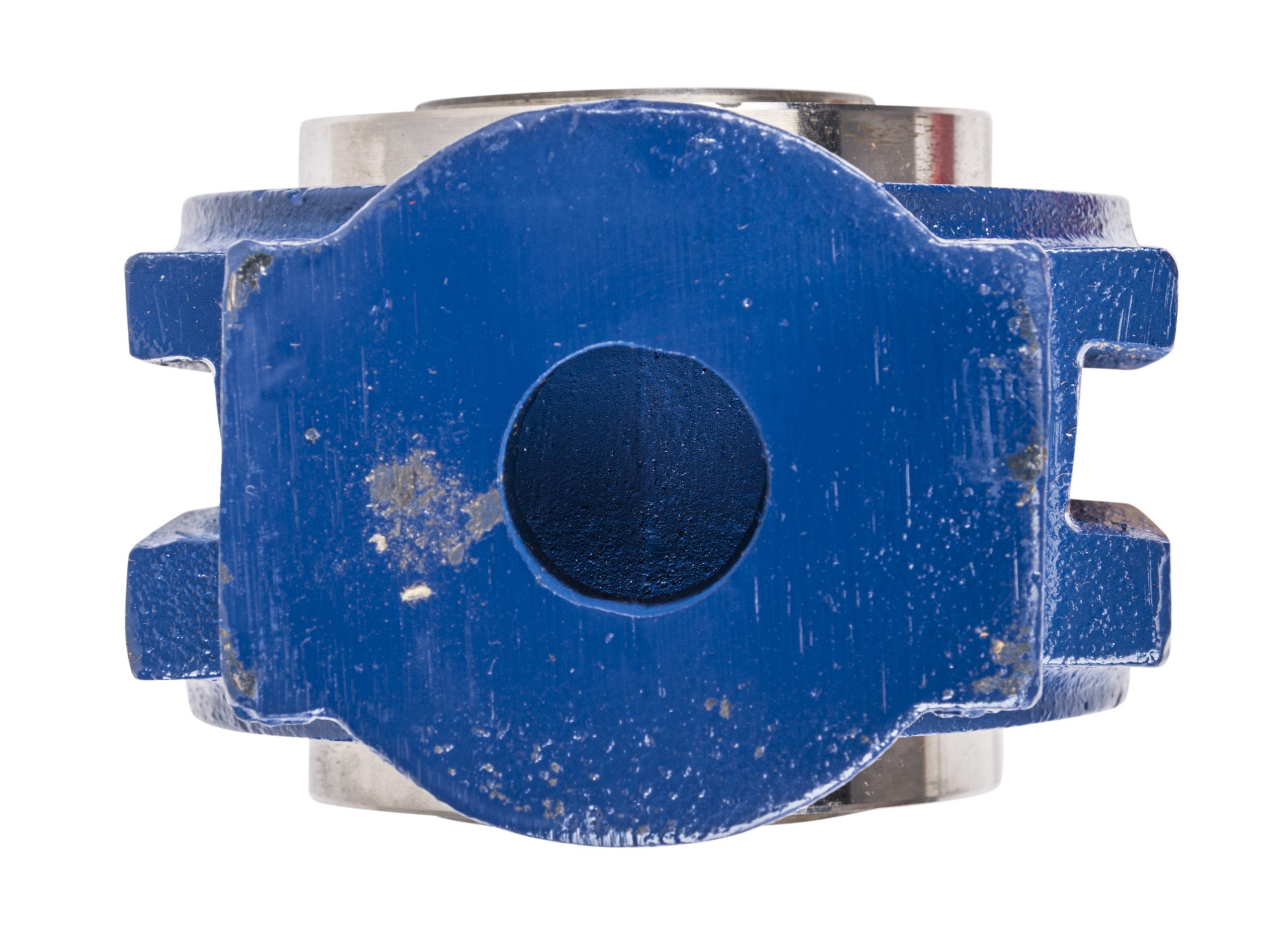

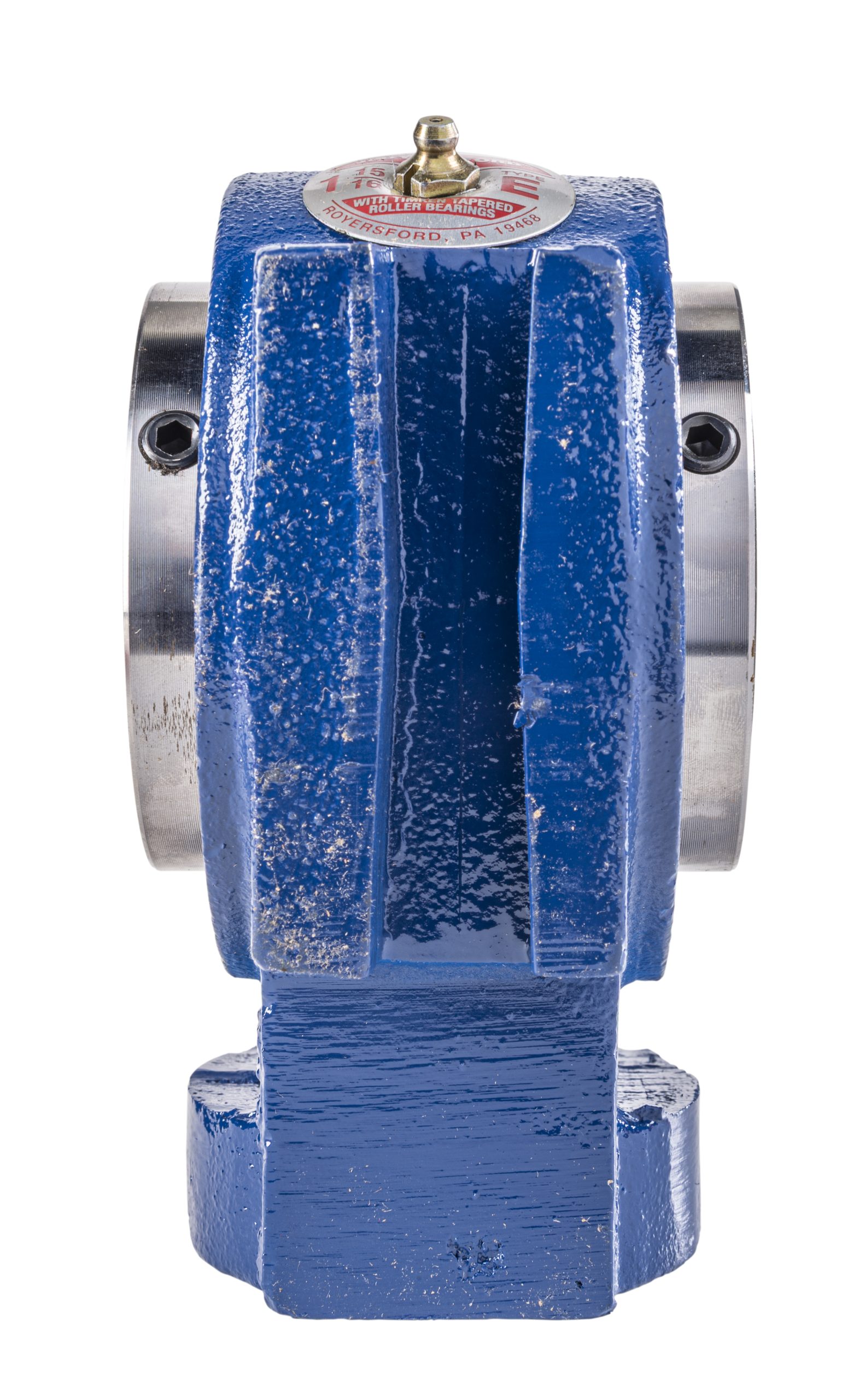

“Type E” Wide Slot Take Up Bearings are designed for use in standard Center Pull Take-Up Frames or similar applications. These units have wide cast ways for supporting guides and are suitable for either horizontal or vertical applications. Gray iron housing furnished unless otherwise specified.

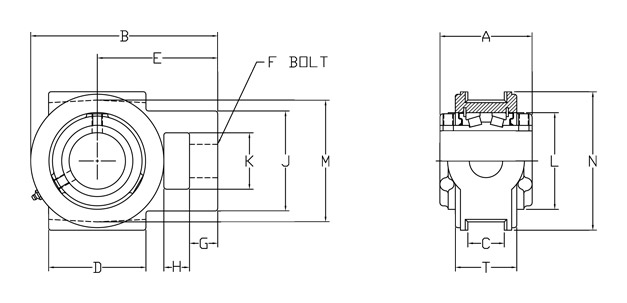

Part Number | Shaft Size (in.) | Wt. (Lbs.) | App. Wt. (lbs.) | Wt. (Oz.) | A (in.) | AA (in.) | B (in.) | BB (in.) | Bolts Size (in.) | C (in.) | CC (in.) | D (in.) | D (Min.) (in.) | D (Max.) (in.) | E (in.) | F (in.) | F Bolt (in.) | F Dia. Bolt (in.) | F Screw (in.) | G (in.) | H (in.) | Inside Dia. (in.) | J (in.) | K (in.) | Keyway Size (in.) | L (in.) | Length (in.) | M (in.) | N (in.) | Number of Bolts | Outside Dia. (in.) | P (in.) | Pipe Tap | Q (in.) | R (in.) | S (in.) | Set Screw (in.) | T (in.) | V (in.) | W (in.) | Width (in.) | Y (in.) | Press No. | Shipping Wt. (lbs.) | Dia. of Work (in.) | Capacity Over Table (in.) | Capacity Over Plate (in.) | Size of Ram (in.) | Leverage Ratio | App. Tons Press. | Height of Press (in.) | Largest Arbor (in.) | Base Dimensions (in.) | Size of Rolls | Number of Rolls | Split Outer Race |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.375 | 7.5 | 3 | 5.09375 | 5.09375 | 5.09375 | 0.53125 | 3.21875 | 0.75 | 0.6875 | 0.625 | 2.4375 | 1.4375 | 2.75 | 3.5 | 4.125 | 2.0625 | ||||||||||||||||||||||||||||||||||||||||
1.4375 | 7.5 | 3 | 5.09375 | 5.09375 | 5.09375 | 0.53125 | 3.21875 | 0.75 | 0.6875 | 0.625 | 2.4375 | 1.4375 | 2.75 | 3.5 | 4.125 | 2.0625 | ||||||||||||||||||||||||||||||||||||||||
1.5 | 11.8 | 3.375 | 6 | 6 | 6 | 0.65625 | 3.8125 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.3125 | 4 | 4.75 | 2.3125 | ||||||||||||||||||||||||||||||||||||||||
1.625 | 11.8 | 3.375 | 6 | 6 | 6 | 0.65625 | 3.8125 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.3125 | 4 | 4.75 | 2.3125 | ||||||||||||||||||||||||||||||||||||||||
1.6875 | 11.8 | 3.375 | 6 | 6 | 6 | 0.65625 | 3.8125 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.3125 | 4 | 4.75 | 2.3125 | ||||||||||||||||||||||||||||||||||||||||
1.75 | 13 | 3.5 | 6.3125 | 6.3125 | 6.3125 | 0.65625 | 3.9375 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.4375 | 4 | 4.75 | 2.4375 | ||||||||||||||||||||||||||||||||||||||||
1.875 | 13 | 3.5 | 6.3125 | 6.3125 | 6.3125 | 0.65625 | 3.9375 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.4375 | 4 | 4.75 | 2.4375 | ||||||||||||||||||||||||||||||||||||||||
1.9375 | 13 | 3.5 | 6.3125 | 6.3125 | 6.3125 | 0.65625 | 3.9375 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.4375 | 4 | 4.75 | 2.4375 | ||||||||||||||||||||||||||||||||||||||||
2 | 13 | 3.5 | 6.3125 | 6.3125 | 6.3125 | 0.65625 | 3.9375 | 1 | 0.9375 | 0.75 | 3.3125 | 1.9375 | 3.4375 | 4 | 4.75 | 2.4375 | ||||||||||||||||||||||||||||||||||||||||
2.1875 | 16 | 3.75 | 7.125 | 7.125 | 7.125 | 0.78125 | 4.625 | 1.125 | 1 | 1 | 3.875 | 2.25 | 3.75 | 4.5 | 5.25 | 2.5625 | ||||||||||||||||||||||||||||||||||||||||
2.25 | 22 | 4 | 7.8125 | 7.8125 | 7.8125 | 1.03125 | 5.0625 | 1.5 | 1.0625 | 1.25 | 4.25 | 2.5 | 4.0625 | 5.125 | 6 | 2.75 | ||||||||||||||||||||||||||||||||||||||||
2.4375 | 22 | 4 | 7.8125 | 7.8125 | 7.8125 | 1.03125 | 5.0625 | 1.5 | 1.0625 | 1.25 | 4.25 | 2.5 | 4.0625 | 5.125 | 6 | 2.75 | ||||||||||||||||||||||||||||||||||||||||
2.5 | 22 | 4 | 7.8125 | 7.8125 | 7.8125 | 1.03125 | 5.0625 | 1.5 | 1.0625 | 1.25 | 4.25 | 2.5 | 4.0625 | 5.125 | 6 | 2.75 | ||||||||||||||||||||||||||||||||||||||||
2.6875 | 29 | 4.5 | 9.125 | 9.125 | 9.125 | 1.78125 | 5.875 | 1.5 | 1.375 | 1.25 | 4.875 | 2.75 | 4.71875 | 5.9375 | 6.75 | 3 | ||||||||||||||||||||||||||||||||||||||||
2.75 | 29 | 4.5 | 9.125 | 9.125 | 9.125 | 1.78125 | 5.875 | 1.5 | 1.375 | 1.25 | 4.875 | 2.75 | 4.71875 | 5.9375 | 6.75 | 3 | ||||||||||||||||||||||||||||||||||||||||
2.9375 | 29 | 4.5 | 9.125 | 9.125 | 9.125 | 1.78125 | 5.875 | 1.5 | 1.375 | 1.25 | 4.875 | 2.75 | 4.71875 | 5.9375 | 6.75 | 3 | ||||||||||||||||||||||||||||||||||||||||
3 | 29 | 4.5 | 9.125 | 9.125 | 9.125 | 1.78125 | 5.875 | 1.5 | 1.375 | 1.25 | 4.875 | 2.75 | 4.71875 | 5.9375 | 6.75 | 3 |
