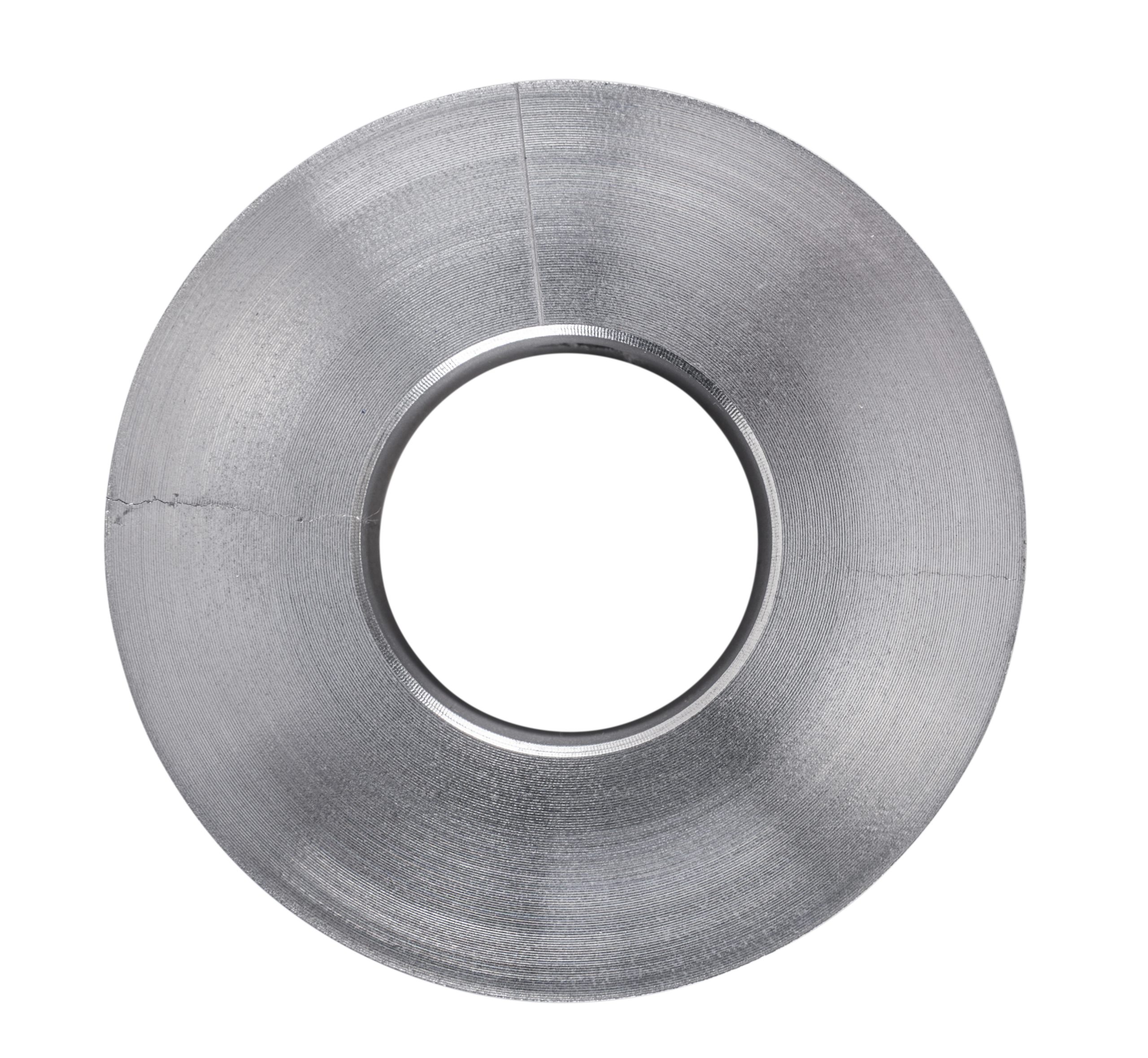

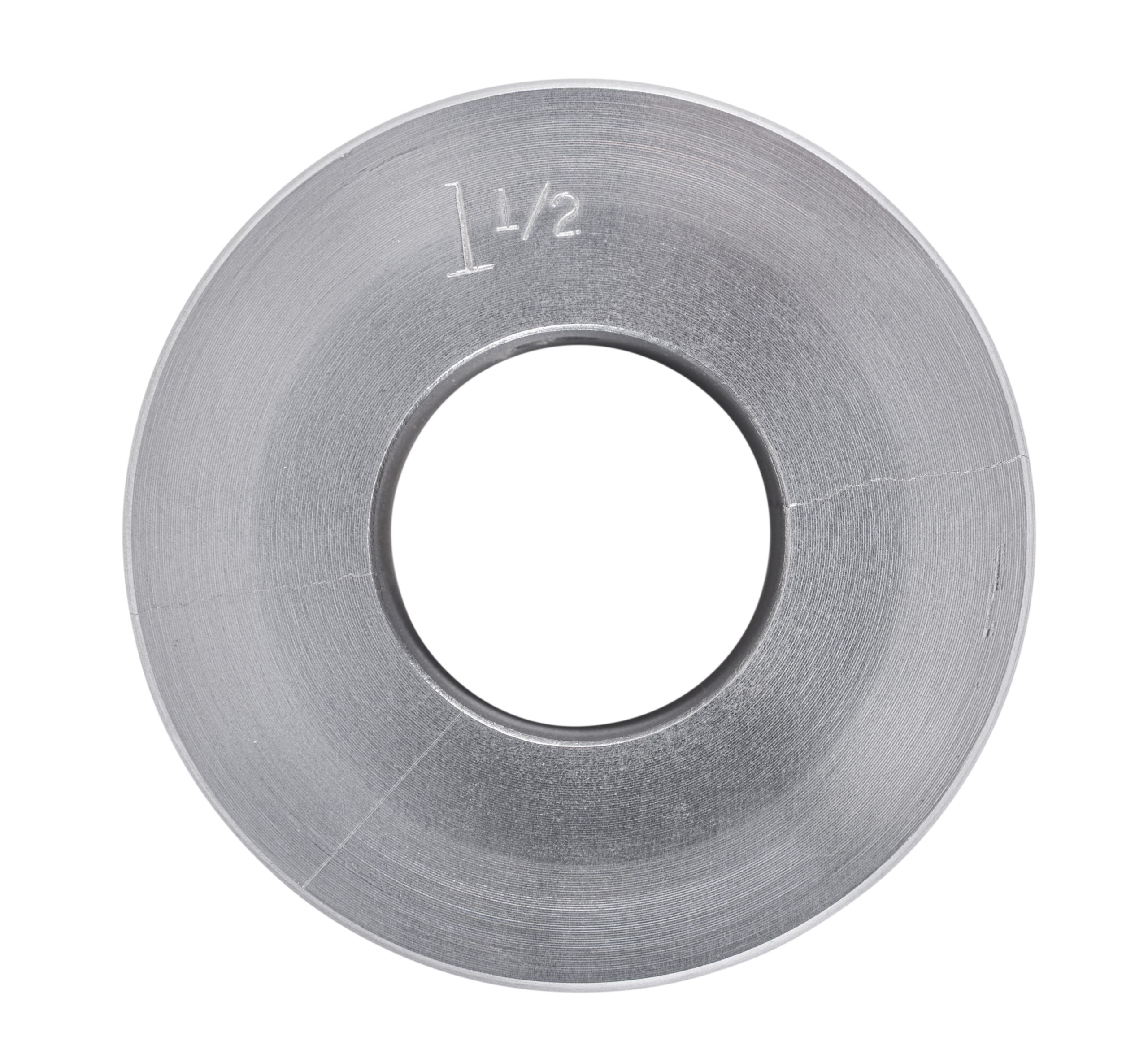

Split Cast Iron Shaft Collars

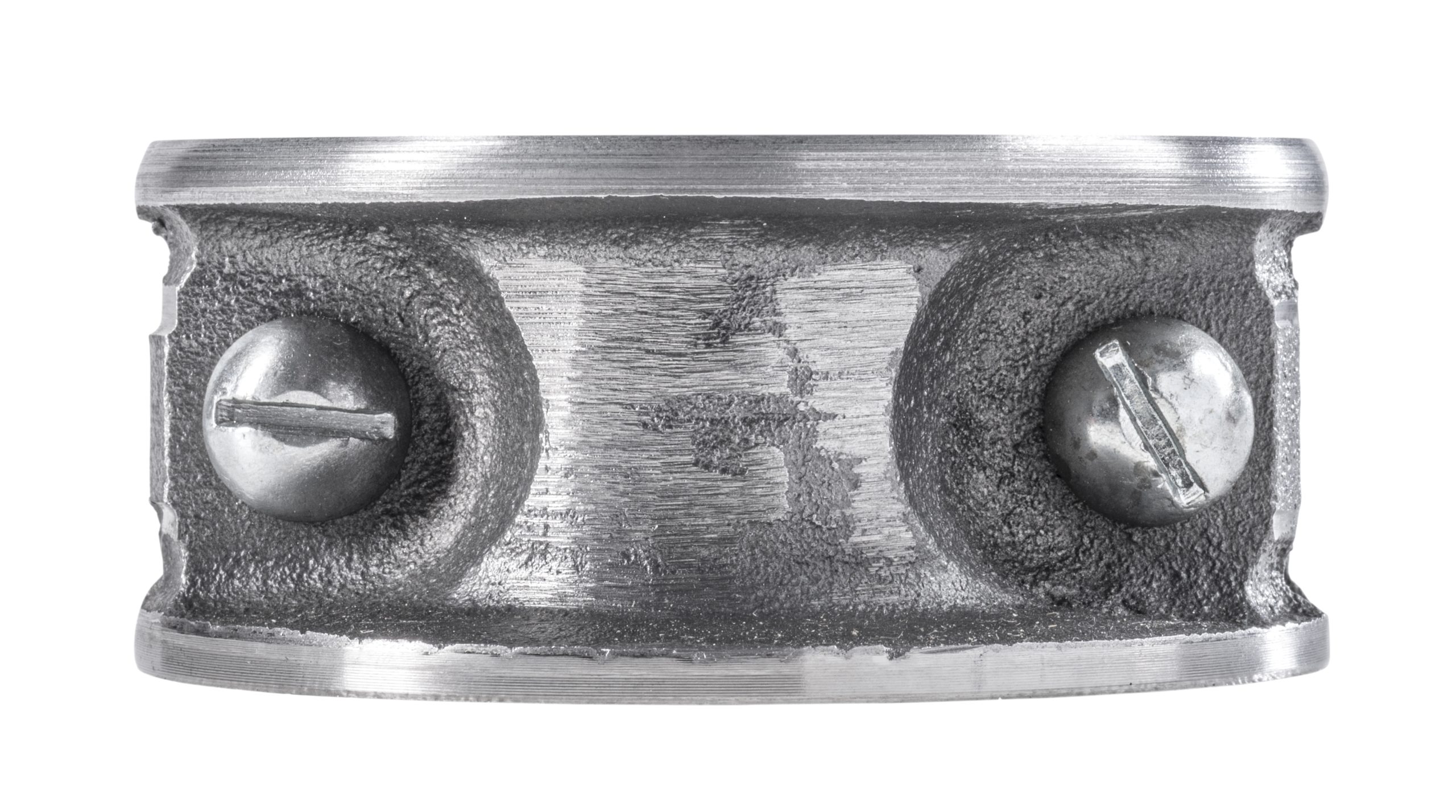

Split cast iron collars are used when the removable feature is desirable. They are available from 1″ shaft size to 8″. Their dimensions are the largest of the three types. Some clamping action is present due to the split style, but the primary positioning force is the socket head set screw.

Sizes not listed – Metric Bores – Made to Order – Price upon request.

Get a Quote

Split Shaft Collars

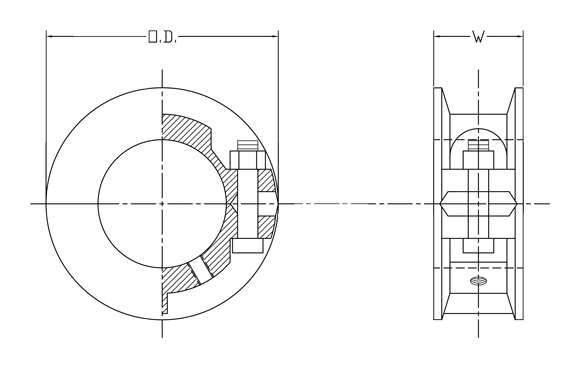

Part Number	Shaft Size (in.)	Wt. (Lbs.)	Outside Dia. (in.)	Width (in.)
60-11-0100	1	1	2.6875	1.0625
60-11-0103	1.1875	1.25	3.125	1.25
60-11-0104	1.25	1.25	3.125	1.25
60-11-0105	1.3125	1.5	4.0625	1.4375
60-11-0107	1.4375	1.5	4.0625	1.4375
60-11-0108	1.5	1.5	4.0625	1.4375
60-11-0111	1.6875	2.25	3.75	1.5625
60-11-0112	1.75	2.25	3.75	1.5625
60-11-0114	1.875	2.75	4.0625	1.75
60-11-0115	1.9375	2.75	4.0625	1.75
60-11-0200	2	2.75	4.0625	1.75
60-11-0203	2.1875	3	4.5	1.875
60-11-0204	2.25	3	4.5	1.875
60-11-0207	2.4375	4	4.875	2
60-11-0208	2.5	4	4.875	2
60-11-0211	2.6875	5	5.3125	2.0625
60-11-0212	2.75	5	5.3125	2.0625
60-11-0215	2.9375	5.75	5.625	2.3125
60-11-0300	3	5.75	5.625	2.3125
60-11-0303	3.1875	8.5	6.0625	2.375
60-11-0304	3.25	8.5	6.0625	2.375
60-11-0307	3.4375	9.75	6.875	2.5625
60-11-0308	3.5	9.75	6.875	2.5625
60-11-0311	3.6875	10	6.8125	2.625
60-11-0315	3.9375	11	7.1875	2.75
60-11-0400	4	11	7.1875	2.75
60-11-0403	4.1875	15.75	7.75	3
60-11-0407	4.4375	16.5	8.125	3.3125
60-11-0408	4.5	16.5	8.125	3.3125
60-11-0415	4.9375	20.5	8.75	3.5
60-11-0500	5	20.5	8.75	3.5
60-11-0507	5.4375	28	9.625	3.75
60-11-0515	5.9375	30	10.125	4.0625
60-11-0600	6	30	10.125	4.0625
60-11-0608	6.5	41	11	4.25
60-11-0700	7	46	12	4.5
60-11-0708	7.5	56	12.9375	4.6875
60-11-0800	8	69	13.625	5.0625
