Royersford-Excelsior Arbor Presses

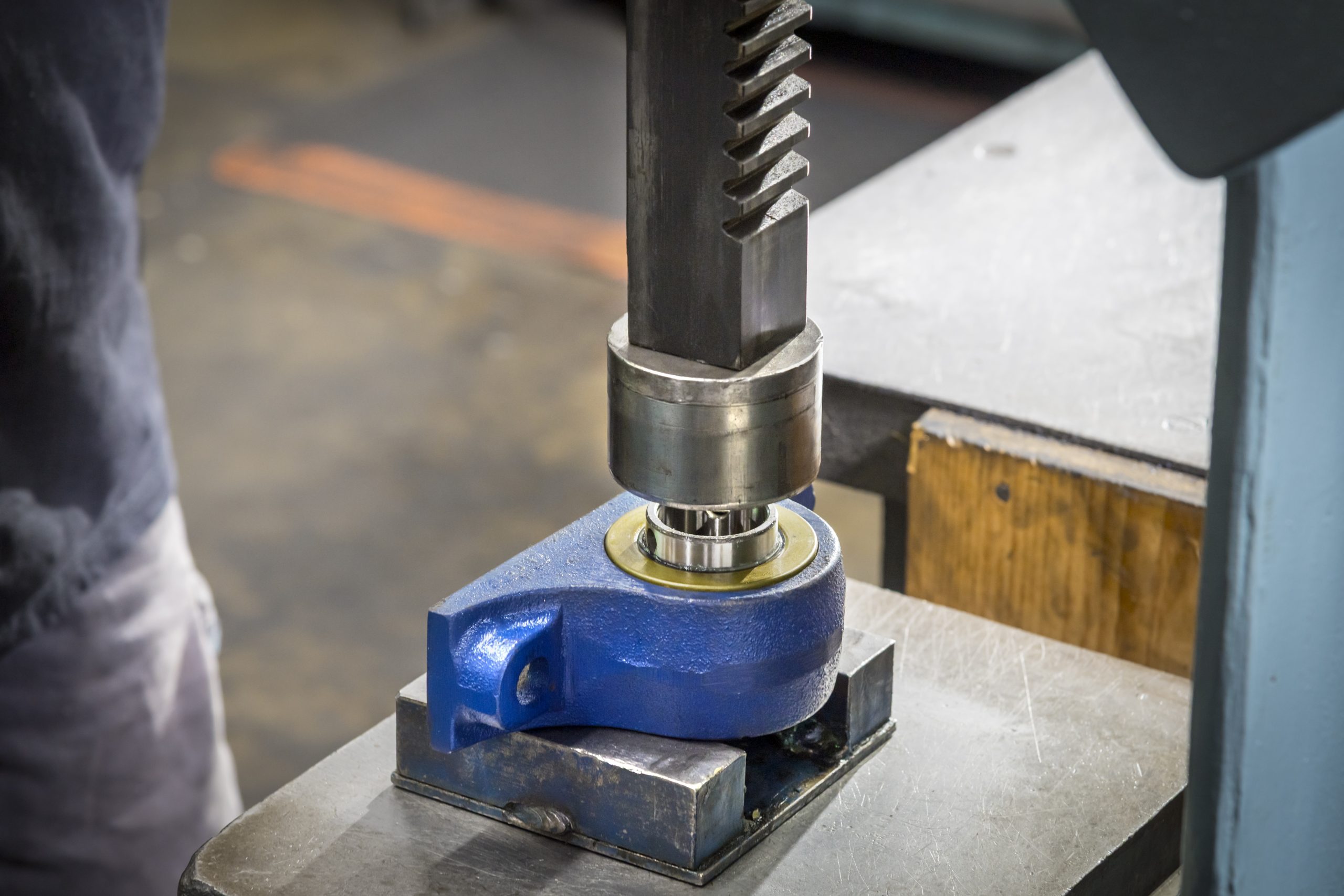

Royersford Arbor Presses are designed to withstand repeated heavy usage. The frames are made from high strength cast iron. The ram and pinion use carbon steel with the largest teeth possible to assure long dependable service. Front and side adjustment of the ram is provided to assure perfect alignment at all times.

Floor stands can be furnished at extra cost for sizes No. 2, 3, and 3 1⁄2. The simple ratchet type is equipped with a hand lock which holds the ram in any desired position.

Plain Lever Type Simple Ratchet Type

Get a Quote

Plain Lever Type

Part Number	Press No.	Shipping Wt. (lbs.)	Dia. of Work (in.)	Capacity Over Table (in.)	Capacity Over Plate (in.)	Size of Ram (in.)	Leverage Ratio	App. Tons Press.	Height of Press (in.)	Largest Arbor (in.)	Base Dimensions (in.)
54-01-0010	0	25	7	4.5	4	3⁄4 x 3⁄4 x 7 1⁄2	20-1	0.5	9.75	1.125	4 x 9
54-01-0020	1	45	8.5	5.25	4.625	1 x 1 x 9 1⁄2	25-1	0.75	11.75	1.375	5 x 10 3⁄4
54-01-0030	2	96	13.5	8.75	7.875	1 1⁄4 x 1 1⁄4 x 13 7⁄8	35-1	2	16.75	1.75	6 7⁄8 x 16 5⁄8
54-01-0040	3	220	15.25	12.75	11.75	1 1⁄2 x 1 1⁄2 x 18	50-1	3	21.625	2.5	8 x 18
54-01-0060	3.5	300	18	17.5	16	1 3⁄4 x 1 3⁄4 x 23 3⁄4	60-1	4	28.75	3.5	9 x 22

Simple Ratchet Type

Part Number	Shaft Size (in.)	Wt. (Lbs.)	App. Wt. (lbs.)	Wt. (Oz.)	A (in.)	AA (in.)	B (in.)	BB (in.)	Bolts Size (in.)	C (in.)	CC (in.)	D (in.)	D (Min.) (in.)	D (Max.) (in.)	E (in.)	F (in.)	F Bolt (in.)	F Dia. Bolt (in.)	F Screw (in.)	G (in.)	H (in.)	Inside Dia. (in.)	J (in.)	K (in.)	Keyway Size (in.)	L (in.)	Length (in.)	M (in.)	N (in.)	Number of Bolts	Outside Dia. (in.)	P (in.)	Pipe Tap	Q (in.)	R (in.)	S (in.)	Set Screw (in.)	T (in.)	V (in.)	W (in.)	Width (in.)	Y (in.)	Press No.	Shipping Wt. (lbs.)	Dia. of Work (in.)	Capacity Over Table (in.)	Capacity Over Plate (in.)	Size of Ram (in.)	Leverage Ratio	App. Tons Press.	Height of Press (in.)	Largest Arbor (in.)	Base Dimensions (in.)	Size of Rolls	Number of Rolls	Split Outer Race
54-01-0050																																											3R	230	15.25	12.75	11.75	1 1⁄2 x 1 1⁄2 x 18	60-1	4	21.625	2.5	8 x 18
54-01-0070																																											3 1⁄2R	335	18	17.5	16	1 3⁄4 x 1 3⁄4 x 23 3⁄4	70-1	5	28.75	3.5	9 x 22
